ULTRASONIC PLASTIC WELDING MACHINE |

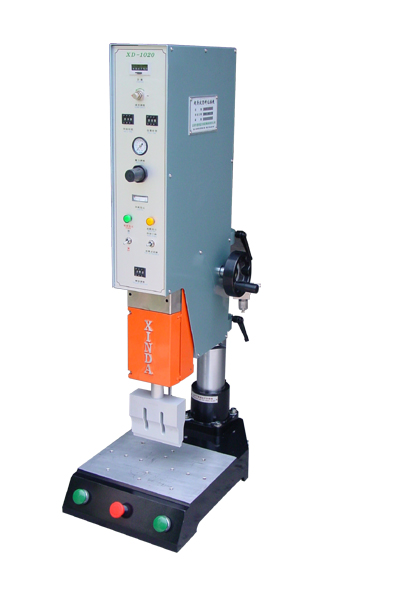

![](images/XD-1020s.jpg)
XD-1020
XD-1220 |

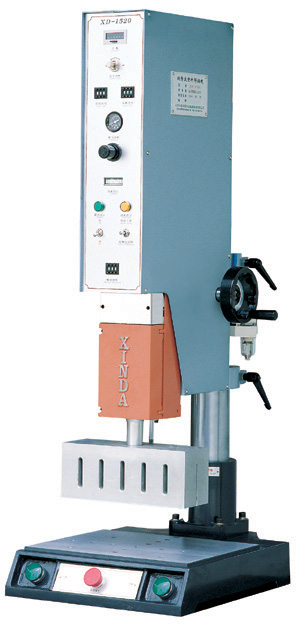

![](images/XD-1520s.jpg)
XD-1520
|
![](images/XD-2215s.jpg)
XD-2215
XD-2615 |

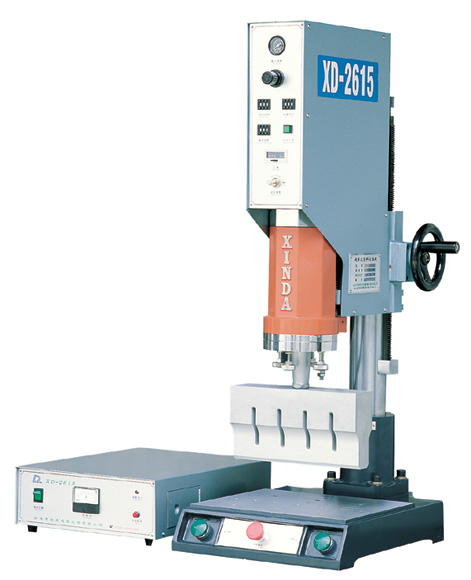

![](images/XD-2615s.jpg)
XD-2215B
XD-2615B |
|

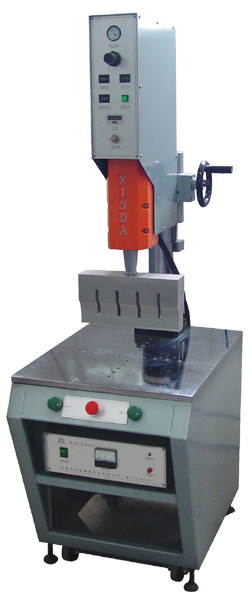

![](images/DSC03263s.jpg) Ground-welder |
|
XD series ultrasonic plastic welding machine can be used in the welding,riveting,spot welding of thermoplastic, and the inlay and edge-pressing technique of metal and plastic without any chemical solvent,adhesive,or other accessorial chemical articles. It has the advantage of low power-consuming,high effciency,firm welding,no distortion,no pollution and convenient operation,etc.
|
CHARATERISTICS |
¡ô Use import pneumatically actuated, original electric appliances with stable functions and good quality. |
¡ô Mechanical digital switches will be accurately adjust the welding parameters. |
¡ô Automatic overload protection, safe and reliable. |
¡ô IC process control is suitable for automated production |
¡ô Easy to operate and the welding speed is fast. |
|
PARAMETER OF EQUIPMENT |
Mledl |
Working Freqcency |
Output Power |
Weld Time |
Hold Time |
Power |
Working Atom.pressure |
Route Journey |
overall Size |
Weight |
XD-1020 |
20kHz |
1000W |
0.1¡«4S |
0.1¡«3S |
220V/50Hz |
0.2¡«0.7Mpa |
80mm |
360¡Á590¡Á1460mm |
68kg |
XD-1220 |
20kHz |
1200W |
0.1¡«4S |
0.1¡«3S |
220V/50Hz |
0.2¡«0.7Mpa |
80mm |
360¡Á590¡Á1460mm |
70kg |
XD-1520 |
20kHz |
1500W |
0.1¡«4S |
0.1¡«3S |
220V/50Hz |
0.2¡«0.7Mpa |
80mm |
420¡Á590¡Á1460mm |
75kg |
XD-2215 |
15kHz |
2200W |
0.1¡«4S |
0.1¡«3S |
220V/50Hz |
0.2¡«0.7Mpa |
80mm |
(Host)420¡Á590¡Á1360mm
(Electric appliances box)130¡Á480¡Á500mm |
115kg |
XD-2615 |
15kHz |
2600W |
0.1¡«4S |
0.1¡«3S |
220V/50Hz |
0.2¡«0.7Mpa |
80mm |
120kg |
|
|
|
